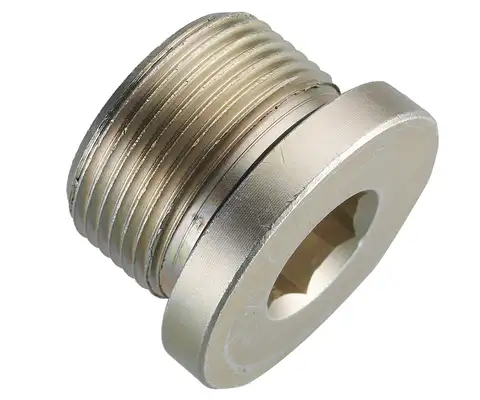

Hexagon socket plug - Male metric thread o-ring

Hexagon socket plug - Male metric thread o-ring



Marked with 『 ★ 』 for customized products

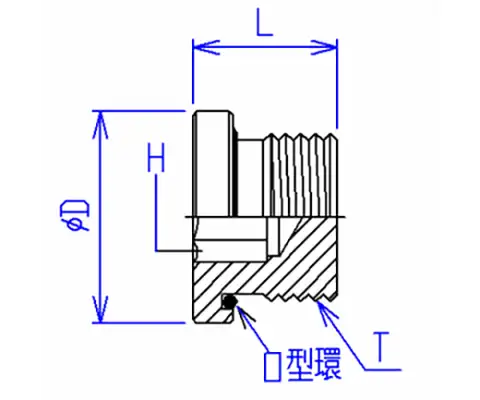

Item No.Spec. T L D H O-ring
MM (thread)
⭑ TMED-12-H 12 M12-1.5 17 16.8 6 P10
TMED-14-H 14 M14-1.5 17 18.9 6 P12
TMED-16-H 16 M16-1.5 17 21.9 8 P14
TMED-18-H 18 M18-1.5 17 23.7 8 P16
TMED-20-H 20 M20-1.5 19 25.9 10 P18
TMED-22-H 22 M22-1.5 19 26.7 10 P20
TMED-24-H 24 M24-1.5 19 29.5 12 P22
