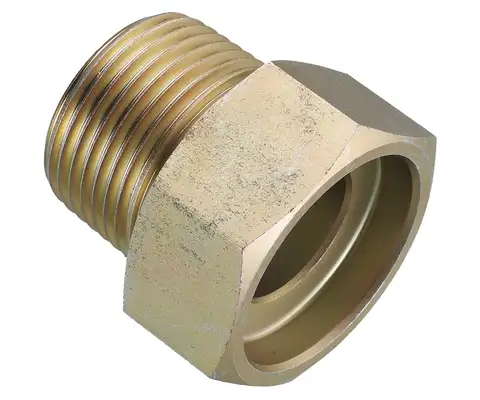

Weld connector - Male PT thread / Socket weld tube end

Weld connector - Male PT thread / Socket weld tube end

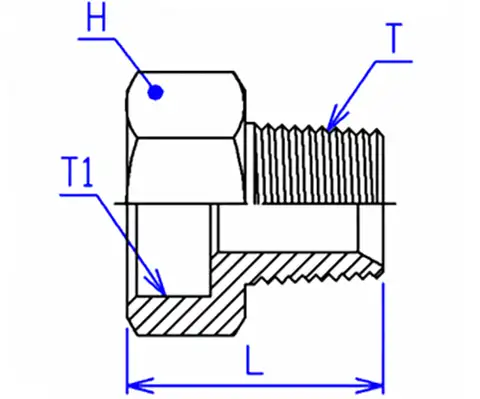

Item No.Spec. T T1 L H
PT x Weld PT(thread)Weld
TPSE-0404-S 1/4 x 1/4 1/4-19 1/4 27 23
TPSE-0606-S 3/8 x 3/8 3/8-19 3/8 29 27
TPSE-0808-S 1/2 x 1/2 1/2-14 1/2 33 32
TPSE-1212-S 3/4 x 3/4 3/4-14 3/4 35 36
TPSE-1616-S 1" x 1" 1-11 1" 42 41
TPSE-2020-S 1 1/4 x 1 1/4 1 1/4-11 1 1/4 44 50
