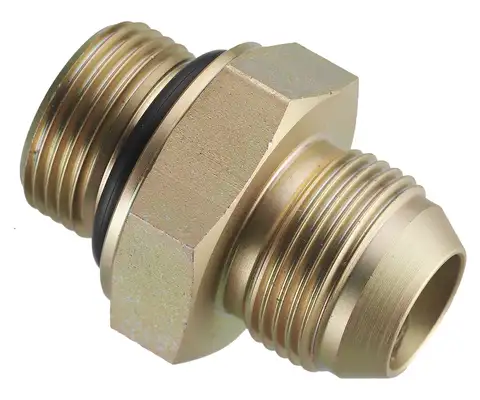

Male stud connector - Male UNF,UN thread o-ring / JIC37˚ flare end

Male stud connector - Male UNF,UN thread o-ring / JIC37˚ flare end



Marked with 『 ★ 』 for customized products

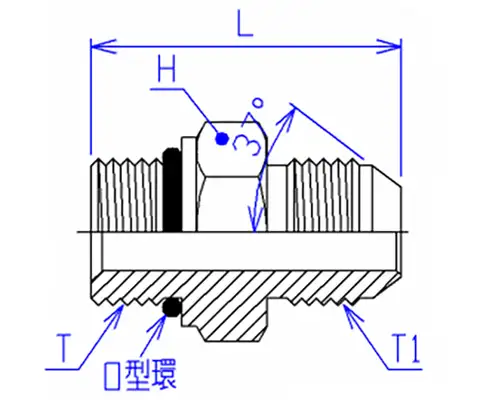

Item No. Spec. T T1 L H O-Ring
TH x TH UNF/UN(thread) UNF/UN(thread)
THOH-0404-S 1/4 x 1/4 7/16-20 7/16-20 32 14 P9
THOH-0406-S 1/4 x 3/8 7/16-20 9/16-18 33 14 P9
THOH-0604-S 3/8 x 1/4 9/16-18 7/16-20 34 17 P12
THOH-0606-S 3/8 x 3/8 9/16-18 9/16-18 35 17 P12
THOH-0806-S 1/2 x 3/8 3/4-16 9/16-18 38 22 P16
THOH-0808-S 1/2 x 1/2 3/4-16 3/4-16 40 22 P16
THOH-1010-S 5/8 x 5/8 7/8-14 7/8-14 43.5 27 P19
THOH-1208-S 3/4 x 1/2 1 1/16-12 3/4-16 45.5 32 P24
THOH-1212-S 3/4 x 3/4 1 1/16-12 1 1/16-12 50.5 32 P24
THOH-1612-S 1" x 3/4 1 5/16-12 1 1/16-12 50.5 38 P30
THOH-1616-S 1" x 1" 1 5/16-12 1 5/16-12 51.5 38 P30
THOH-2016-S 1 1/4 x 1" 1 5/8-12 1 5/16-12 55.5 50 P38
THOH-2020-S 1 1/4 x 1 1/4 1 5/8-12 1 5/8-12 57.5 50 P38
THOH-2420-S 1 1/2 x 1 1/4 1 7/8-12 1 5/8-12 57.5 55 P44
THOH-2424-S 1 1/2 x 1 1/2 1 7/8-12 1 7/8-12 60.5 55 P44
⭑ THOH-3232-S 2" x 2" 2 1/2-12 2 1/2-12 69.5 72 JASO3060
