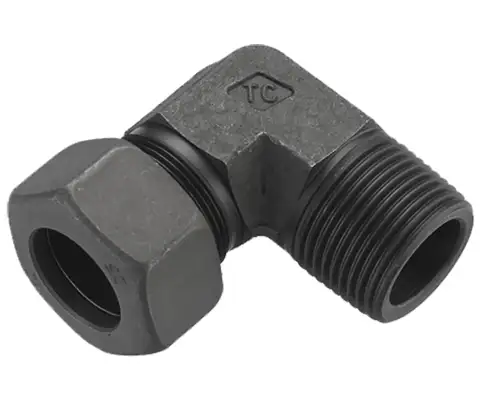

Male stud elbow Japanese size - Male PT thread / Tube end

Male stud elbow Japanese size - Male PT thread / Tube end

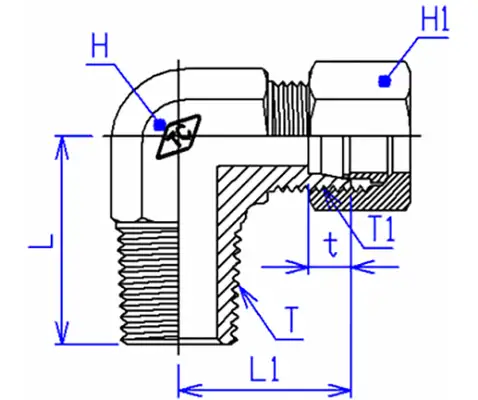

Item No. Spec. T T1 L L1 t H H1
PT X O.D. PT(thread) (thread)
TPD-0204-L 1/8 x 4 1/8-28 M8-1.0 17 15 4 11 12
TPD-0206-L 1/8 x 6 1/8-28 M12-1.5 22 22 7 14 14
TPD-0208-L 1/8 x 8 1/8-28 M14-1.5 22 22 7 14 17
TPD-0210-L 1/8 x 10 1/8-28 M16-1.5 22 22 7 17 19
TPD-0404-L 1/4 x 4 1/4-19 M8-1.0 26.5 20 4 14 12
TPD-0406-L 1/4 x 6 1/4-19 M12-1.5 26.5 22 7 14 14
TPD-0408-L 1/4 x 8 1/4-19 M14-1.5 26.5 22 7 14 17
TPD-0410-L 1/4 x 10 1/4-19 M16-1.5 28 24 7 17 19
TPD-0412-L 1/4 x 12 1/4-19 M18-1.5 29.5 27 7 19 22
TPD-0606-L 3/8 x 6 3/8-19 M12-1.5 28 24 7 17 14
TPD-0608-L 3/8 x 8 3/8-19 M14-1.5 28 24 7 17 17
TPD-0610-L 3/8 x 10 3/8-19 M16-1.5 28 24 7 17 19
TPD-0612-L 3/8 x 12 3/8-19 M18-1.5 29.5 27 7 19 22
TPD-0615-L 3/8 x 15 3/8-19 M22-1.5 32 27.5 7.5 21 27
TPD-0618-L 3/8 x 18 3/8-19 M26-1.5 35 32 8 24 32
TPD-0810-L 1/2 x 10 1/2-14 M16-1.5 32 27.5 7 21 19
TPD-0812-L 1/2 x 12 1/2-14 M18-1.5 32 27.5 7 21 22
TPD-0815-L 1/2 x 15 1/2-14 M22-1.5 32 27.5 7.5 21 27
TPD-0818-L 1/2 x 18 1/2-14 M26-1.5 37.5 32 8 24 32
TPD-0820-L 1/2 x 20 1/2-14 M30-1.5 42 34 8 27 36
TPD-0822-L 1/2 x 22 1/2-14 M30-1.5 42 34 9 27 36
TPD-1215-L 3/4 x 15 3/4-14 M22-1.5 37.5 31 7.5 24 27
TPD-1218-L 3/4 x 18 3/4-14 M26-1.5 37.5 32 8 24 32
TPD-1220-L 3/4 x 20 3/4-14 M30-1.5 42 34 8 27 36
TPD-1222-L 3/4 x 22 3/4-14 M30-1.5 42 34 9 27 36
TPD-1225-L 3/4 x 25 3/4-14 M34-1.5 46 41 10 34 41
TPD-1620-L 1" x 20 1-11 M30-1.5 50.5 39 8 34 36
TPD-1622-L 1" x 22 1-11 M30-1.5 50.5 39 9 34 36
TPD-1625-L 1" x 25 1-11 M34-1.5 50.5 41 10 34 41
TPD-1628-L 1" x 28 1-11 M38-1.5 57 46 10 41 46
TPD-2025-L 1 1/4 x 25 1 1/4-11 M34-1.5 61 46 10 41 41
TPD-2028-L 1 1/4 x 28 1 1/4-11 M38-1.5 61 46 10 41 46
TPD-2034-L 1 1/4 x 34 1 1/4-11 M45-2.0 61 52 11 50 55
TPD-2434-L 1 1/2 x 34 1 1/2-11 M45-2.0 61 52 11 50 55
