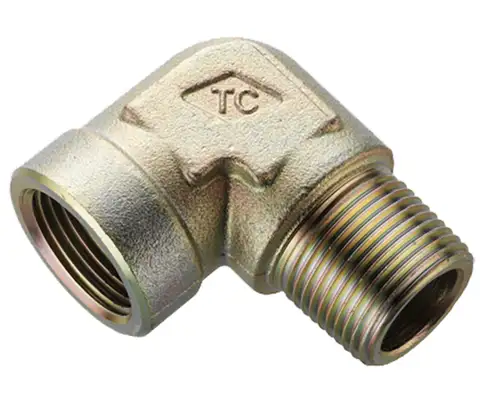

Male female thread elbow - Male PT thread / Female PT thread

Male female thread elbow - Male PT thread / Female PT thread

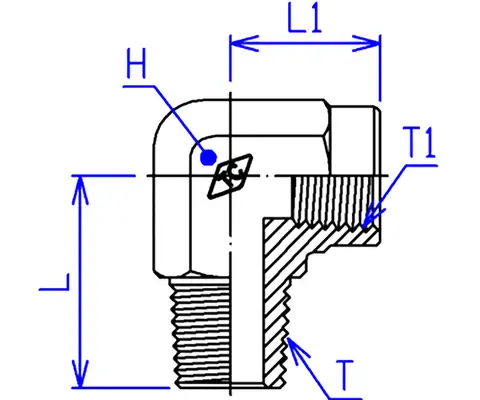

Item No. Spec. T T1 L L1 H
PT x PT female thread PT (thread) PT (thread)
TPTE-0202-L 1/8 x 1/8 1/8-28 1/8-28 22 16 14
TPTE-0204-L 1/8 x 1/4 1/8-28 1/4-19 27 27 19
TPTE-0404-L 1/4 x 1/4 1/4-19 1/4-19 29.5 27 19
TPTE-0406-L 1/4 x 3/8 1/4-19 3/8-19 32 27.5 21
TPTE-0604-L 3/8 x 1/4 3/8-19 1/4-19 29.5 27 19
TPTE-0606-L 3/8 x 3/8 3/8-19 3/8-19 32 27.5 21
TPTE-0608-L 3/8 x 1/2 3/8-19 1/2-14 41 32.5 27
TPTE-0806-L 1/2 x 3/8 1/2-14 3/8-19 32 27.5 21
TPTE-0808-L 1/2 x 1/2 1/2-14 1/2-14 41 32.5 27
TPTE-0812-L 1/2 x 3/4 1/2-14 3/4-14 46 31.5 33
TPTE-1208-L 3/4 x 1/2 3/4-14 1/2-14 41 32.5 27
TPTE-1212-L 3/4 x 3/4 3/4-14 3/4-14 46 31.5 33
TPTE-1216-L 3/4 x 1" 3/4-14 1-11 54 42 41
TPTE-1612-L 1" x 3/4 1-11 3/4-14 50.5 31.5 33
TPTE-1616-L 1" x 1" 1-11 1-11 61 42 41
TPTE-2016-L 1 1/4 x 1" 1 1/4-11 1-11 61 42 41
TPTE-2020-L 1 1/4 x 1 1/4 1 1/4-11 1 1/4-11 66 52.5 50
TPTE-2424-L 1 1/2 x 1 1/2 1 1/2-11 1 1/2-11 76 61 63
