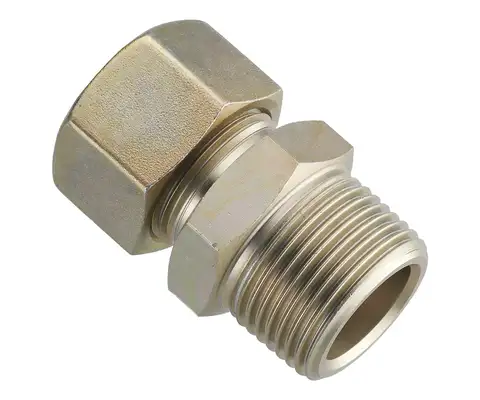

Male stud connector European size -Male PT thread / Tube end

Male stud connector European size -Male PT thread / Tube end (L-Specifcation)



Item No. Spec. T T1 L t H H1
PT X O.D. PT(thread) (thread)
TPD-0206L-S 1/8 x 6L 1/8-28 M12-1.5 28 7 14 14
TPD-0208L-S 1/8 x 8L 1/8-28 M14-1.5 28 7 17 17
TPD-0210L-S 1/8 x 10L 1/8-28 M16-1.5 29 7 17 19
TPD-0406L-S 1/4 x 6L 1/4-19 M12-1.5 31 7 14 14
TPD-0408L-S 1/4 x 8L 1/4-19 M14-1.5 31 7 17 17
TPD-0410L-S 1/4 x 10L 1/4-19 M16-1.5 32.5 7 19 19
TPD-0412L-S 1/4 x 12L 1/4-19 M18-1.5 32.5 7 19 22
TPD-0606L-S 3/8 x 6L 3/8-19 M12-1.5 33 7 17 14
TPD-0608L-S 3/8 x 8L 3/8-19 M14-1.5 33 7 17 17
TPD-0610L-S 3/8 x 10L 3/8-19 M16-1.5 34.5 7 19 19
TPD-0612L-S 3/8 x 12L 3/8-19 M18-1.5 34.5 7 19 22
TPD-0615L-S 3/8 x 15L 3/8-19 M22-1.5 37 7.5 23 27
TPD-0618L-S 3/8 x 18L 3/8-19 M26-1.5 38 8 27 32
TPD-0806L-S 1/2 x 6L 1/2-14 M12-1.5 37 7 21 14
TPD-0808L-S 1/2 x 8L 1/2-14 M14-1.5 37 7 21 17
TPD-0810L-S 1/2 x 10L 1/2-14 M16-1.5 38 7 21 19
TPD-0812L-S 1/2 x 12L 1/2-14 M18-1.5 38 7 21 22
TPD-0815L-S 1/2 x 15L 1/2-14 M22-1.5 40 7.5 23 27
TPD-0818L-S 1/2 x 18L 1/2-14 M26-1.5 41 8 27 32
TPD-0822L-S 1/2 x 22L 1/2-14 M30-2.0 42 7.5 32 36
TPD-1215L-S 3/4 x 15L 3/4-14 M22-1.5 43 7.5 27 27
TPD-1218L-S 3/4 x 18L 3/4-14 M26-1.5 44 8 29 32
TPD-1222L-S 3/4 x 22L 3/4-14 M30-2.0 44 7.5 32 36
TPD-1228L-S 3/4 x 28L 3/4-14 M36-2.0 46 7.5 41 41
TPD-1622L-S 1" x 22L 1-11 M30-2.0 47 7.5 36 36
TPD-1628L-S 1" x 28L 1-11 M36-2.0 48 7.5 41 41
TPD-1635L-S 1" x 35L 1-11 M45-2.0 51 10.5 46 50
TPD-2028L-S 1 1/4 x 28L 1 1/4-11 M36-2.0 51 7.5 46 41
TPD-2035L-S 1 1/4 x 35L 1 1/4-11 M45-2.0 53 10.5 46 50
TPD-2042L-S 1 1/4 x 42L 1 1/4-11 M52-2.0 54 11 55 60
TPD-2442L-S 1 1/2 x 42L 1 1/2-11 M52-2.0 55 11 55 60
