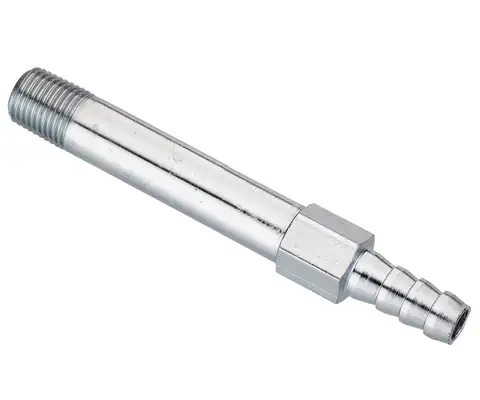

Extra long male hose connector - Male UNC thread / Male Hose

Extra long male hose connector - Male UNC thread / Male Hose



 Marked with 『 ★ 』 for customized products

Item No. Spec. T T1 L D H
UNC x Hose x Length UNC (thread) Hose
TUNL-0606-S75 3/8 x 3/8 x 75𝓁 3/8-16 3/8 75 10.3 12
TPUL-0606-S80 3/8 x 3/8 x 80𝓁 3/8-16 3/8 80 10.3 12
TUNL-0606-S100 3/8 x 3/8 x 100𝓁 3/8-16 3/8 100 10.3 12
TUNL-0606-S120 3/8 x 3/8 x 120𝓁 3/8-16 3/8 120 10.3 12
TUNL-0606-S150 3/8 x 3/8 x 150𝓁 3/8-16 3/8 150 10.3 12
⭑TUNL-0606-S180 3/8 x 3/8 x 180𝓁 3/8-16 3/8 180 10.3 12
TUNL-0606-S200 3/8 x 3/8 x 200𝓁 3/8-16 3/8 200 10.3 12
⭑TUNL-0608-S75 3/8 x 1/2 x 75𝓁 3/8-16 1/2 75 13.5 14
⭑TUNL-0608-S100 3/8 x 1/2 x 100𝓁 3/8-16 1/2 100 13.5 14
⭑TUNL-0608-S120 3/8 x 1/2 x 120𝓁 3/8-16 1/2 120 13.5 14
⭑TUNL-0608-S150 3/8 x 1/2 x 150𝓁 3/8-16 1/2 150 13.5 14
⭑TUNL-0608-S180 3/8 x 1/2 x 180𝓁 3/8-16 1/2 180 13.5 14
⭑TUNL-0608-S200 3/8 x 1/2 x 200𝓁 3/8-16 1/2 200 13.5 14
⭑TUNL-0806-S75 1/2 x 3/8 x 75𝓁 1/2-13 3/8 75 10.3 14
TUNL-0806-S100 1/2 x 3/8 x 100𝓁 1/2-13 3/8 100 10.3 14
TUNL-0806-S120 1/2 x 3/8 x 120𝓁 1/2-13 3/8 120 10.3 14
TUNL-0806-S150 1/2 x 3/8 x 150𝓁 1/2-13 3/8 150 10.3 14
⭑TUNL-0806-S180 1/2 x 3/8 x 180𝓁 1/2-13 3/8 180 10.3 14
TUNL-0806-S200 1/2 x 3/8 x 200𝓁 1/2-13 3/8 200 10.3 14
⭑TUNL-0808-S75 1/2 x 1/2 x 75𝓁 1/2-13 1/2 75 13.5 14
TUNL-0808-S100 1/2 x 1/2 x 100𝓁 1/2-13 1/2 100 13.5 14
TUNL-0808-S120 1/2 x 1/2 x 120𝓁 1/2-13 1/2 120 13.5 14
TUNL-0808-S150 1/2 x 1/2 x 150𝓁 1/2-13 1/2 150 13.5 14
⭑TUNL-0808-S180 1/2 x 1/2 x 180𝓁 1/2-13 1/2 180 13.5 14
⭑TUNL-0808-S200 1/2 x 1/2 x 200𝓁 1/2-13 1/2 200 13.5 14
