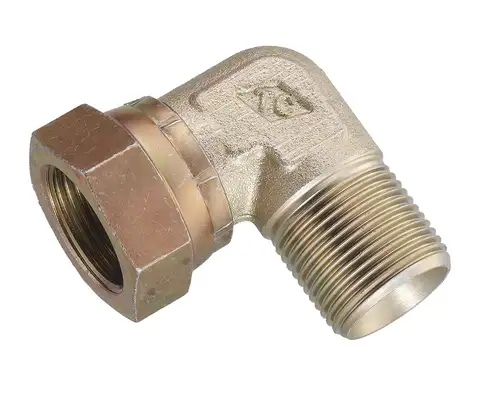

Swivel nut elbow - JIS30˚ flare end / JIS30˚ cone female swivel end

Swivel nut elbow - JIS30˚ flare end / JIS30˚ cone female swivel end



IMarked with 『 ★ 』 for customized products

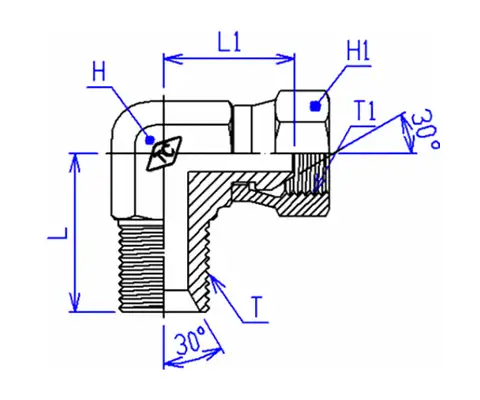

Item No. Spec. T T1 L L1 H H1
PF x PF PF (thread) PF (thread)
TGFA-0404-L 1/4 x 1/4 1/4-19 1/4-19 26.5 20.5 14 19
TGFA-0606-L 3/8 x 3/8 3/8-19 3/8-19 28 24 17 22
TGFA-0808-L 1/2 x 1/2 1/2-14 1/2-14 32 27.5 21 26
TGFA-1212-L 3/4 x 3/4 3/4-14 3/4-14 41 32.5 27 32
TGFA-1616-L 1" x 1" 1-11 1-11 50.5 37.5 33 41
TGFA-2020-L 1 1/4 x 1 1/4 1 1/4-11 1 1/4-11 61 51.5 41 50
TGFA-2424-L 1 1/2 x 1 1/2 1 1/2-11 1 1/2-11 66 57 50 57
⭑ TGFA-3232-L 2" x 2" 2-11 2-11 76 67 63 68
