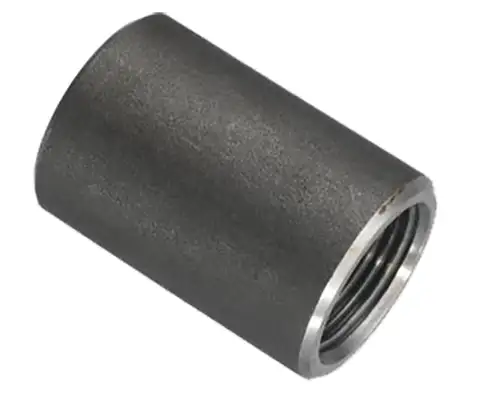

Female thread coupling - Female PT thread

Female thread coupling - Female PT thread

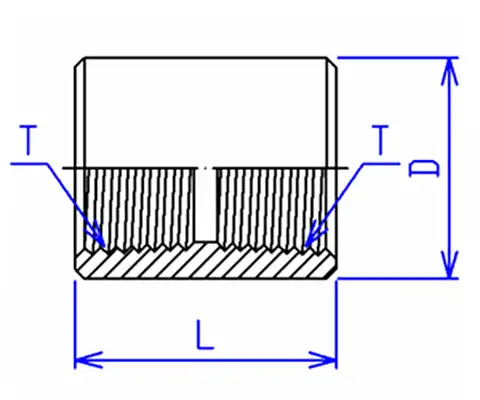

Item No.Spec. T L D
PT PT(thread)
TPPE-02-O 1/8 1/8-28 22 14
TPPE-04-O 1/4 1/4-19 26 20
TPPE-06-O 3/8 3/8-19 29 24
TPPE-08-O 1/2 1/2-14 32 28.5
TPPE-12-O 3/4 3/4-14 35 34.5
TPPE-16-O 1" 1-11 40 41.5
TPPE-20-O 1 1/4 1 1/4-11 50 54
TPPE-24-O 1 1/2 1 1/2-11 50 60
TPPE-32-O 2" 2-11 60 73
TPPE-40-O 2 1/2 2 1/2-11 94 93
