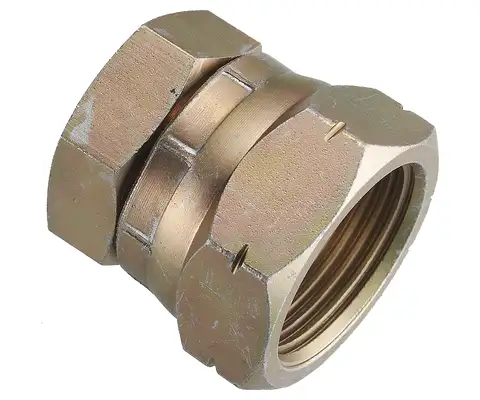

Swivel nut cap - JIS30˚ flare female swivel cap end

Swivel nut cap - JIS30˚ flare female swivel cap end



Item No. Spec. T L H H1
PF PF (thread)
TGA-04-H 1/4 1/4-19 15 17 19
TGA-06-H 3/8 3/8-19 17 19 22
TGA-08-H 1/2 1/2-14 18 23 26
TGA-12-H 3/4 3/4-14 20.5 35 32
TGA-16-H 1" 1-11 24 35 41
TGA-20-H 1 1/4 1 1/4-11 27 41 50
TGA-24-H 1 1/2 1 1/2-11 30 50 57
TGA-32-H 2" 2-11 33 65 68
