45˚ male stud elbow - Male PF thread o-ring / JIS30˚ flare end

45˚ male stud elbow - Male PF thread o-ring / JIS30˚ flare end

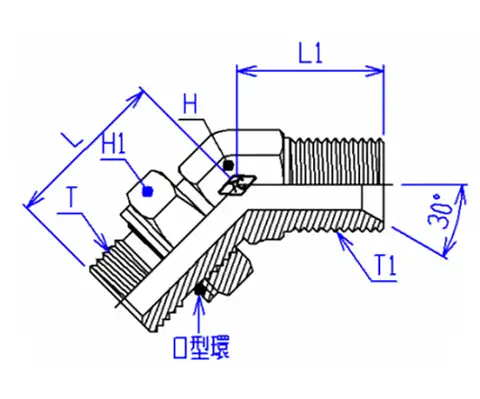

Item No. Spec. T T1 L L1 H H1 O-Ring
PF x PF PF(thread) PF(thread)
TFOG-0404-F 1/4 x 1/4 1/4-19 1/4-19 28 20 12 19 P11
TFOG-0606-F 3/8 x 3/8 3/8-19 3/8-19 31 24 17 21 P14
TFOG-0808-F 1/2 x 1/2 1/2-14 1/2-14 36 27 21 26 P18
TFOG-1212-F 3/4 x 3/4 3/4-14 3/4-14 42 34 27 35 P24
TFOG-1616-F 1" x 1" 1-11 1-11 47 37 33 41 P30
