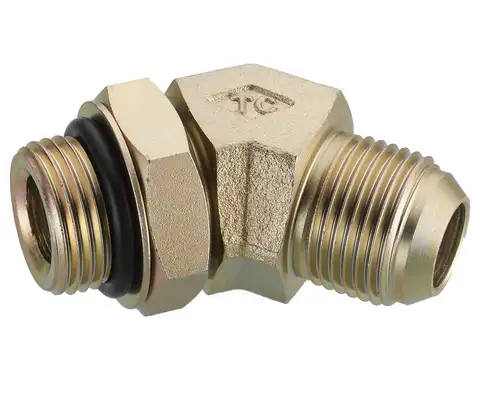

45˚ male stud elbow - Male UNF,UN thread o-ring / JIC37˚ flare end

45˚ male stud elbow - Male UNF,UN thread o-ring / JIC37˚ flare end

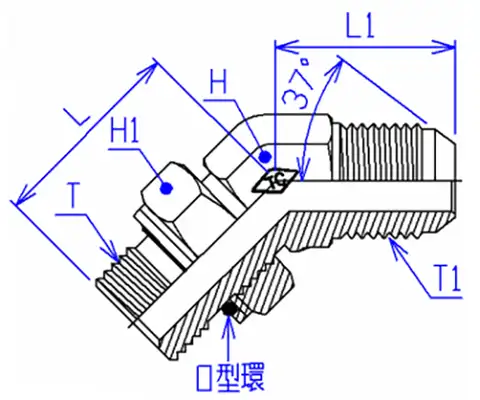

Item No. Spec. T T1 L L1 H H1 O-Ring
TH X TH UNF/UN(thread) UNF/UN(thread)
THOH-0404-F 1/4 x 1/4 7/16-20 7/16-20 28 20 12 17 P9
THOH-0606-F 3/8 x 3/8 9/16-18 9/16-18 28 20 12 19 P12
THOH-0808-F 1/2 x 1/2 3/4-16 3/4-16 36 27 21 24 P16
THOH-1010-F 5/8 x 5/8 7/8-14 7/8-14 36 27 21 27 P19
THOH-1212-F 3/4 x 3/4 1 1/16-12 1 1/16-12 42 34 27 35 P24
THOH-1616-F 1" x 1" 1 5/16-12 1 5/16-12 47 37 33 41 P30
