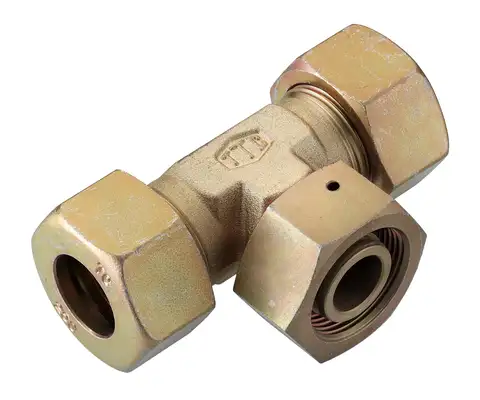

Swivel nut branch tee - Tube end / EO24˚ DKO swivel

Swivel nut branch tee - Tube end / EO24˚ DKO swivel



Marked with 『 ★ 』 for customized products

Item No. Spec. T L L1 L2 D H H1 H2
Tube O.D. (thread)
TDKD-06L-T 6L M12-1.5 19 25.5 7 6 14 14 14
TDKD-08-L-T 8L M14-1.5 21 26 7 8 14 17 17
TDKD-10L-T 10L M16-1.5 22 28.5 7 10 19 19 19
TDKD-12L-T 12L M18-1.5 24 29 7 12 19 22 22
TDKD-15L-T 15L M22-1.5 28 32 7.5 15 23 27 27
TDKD-18L-T 18L M26-1.5 31 35 8 18 27 32 32
TDKD-22L-T 22L M30-2.0 35 37 7.5 22 27 36 36
TDKD-28L-T 28L M36-2.0 38 41 7.5 28 36 41 41
⭑ TDKD-35L-T 35L M45-2.0 45 49 10.5 35 41 50 50
⭑ TDKD-42L-T 42L M52-2.0 55 54 11 42 50 60 60
TDKD-06S-T 6S M14-1.5 23 26 7 6 14 17 17
TDKD-08S-T 8S M16-1.5 24 27 7 8 19 19 19
TDKD-10S-T 10S M18-1.5 25 29 7.5 10 19 22 22
TDKD-12S-T 12S M20-1.5 29 30 7.5 12 23 24 24
TDKD-16S-T 16S M24-1.5 33 35 8.5 16 27 30 30
TDKD-20S-T 20S M30-2.0 37 42 10.5 20 27 36 36
TDKD-25S-T 25S M36-2.0 42 46.5 12 25 36 46 46
⭑ TDKD-30S-T 30S M42-2.0 49 50 13.5 30 41 50 50
⭑ TDKD-38S-T 38S M52-2.0 57 56 12 38 50 60 60
