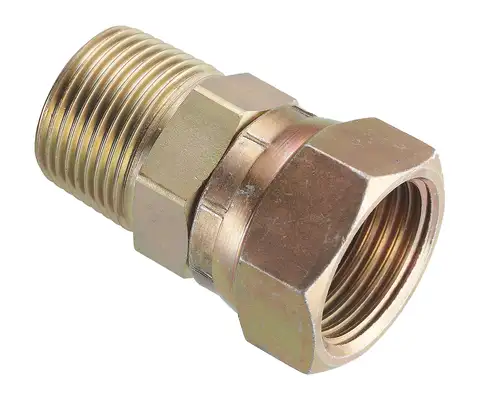

Swivel nut connector - Male PT thread / JIC37˚ flare female swivel end

Swivel nut connector - Male PT thread / JIC37˚ flare female swivel end



Marked with 『 ★ 』 for customized products

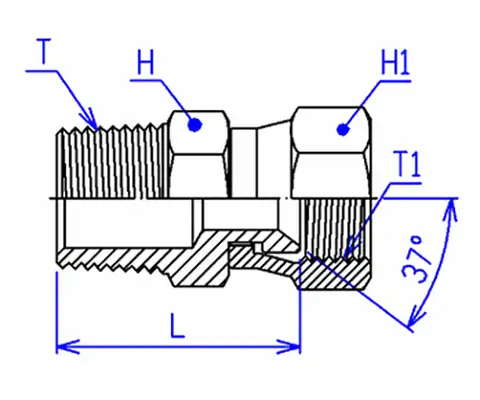

Item No. Spec. T T1 L H1 H1
PT x TH PT (thread) UNF/UN (thread)
⭑ TPHA-0204-S 1/8 x 1/4 1/8-28 7/16-20 24.5 14 17
TPHA-0404-S 1/4 x 1/4 1/4-19 7/16-20 27.5 14 17
TPHA-0406-S 1/4 x 3/8 1/4-19 9/16-18 28.5 14 19
TPHA-0604-S 3/8 x 1/4 3/8-19 7/16-20 29.5 17 17
TPHA-0606-S 3/8 x 3/8 3/8-19 9/16-18 30.5 17 19
TPHA-0608-S 3/8 x 1/2 3/8-19 3/4-16 33 21 24
TPHA-0806-S 1/2 x 3/8 1/2-14 9/16-18 35 21 19
TPHA-0808-S 1/2 x 1/2 1/2-14 3/4-16 36 21 24
TPHA-0810-S 1/2 x 5/8 1/2-14 7/8-14 36.5 23 27
TPHA-0812-S 1/2 x 3/4 1/2-14 1 1/16-12 38.5 27 32
TPHA-1208-S 3/4 x 1/2 3/4-14 3/4-16 38.5 27 24
TPHA-1212-S 3/4 x 3/4 3/4-14 1 1/16-12 40.5 27 32
TPHA-1216-S 3/4 x 1" 3/4-14 1 5/16-12 44 33.3 41
TPHA-1612-S 1" x 3/4 1-11 1 1/16-12 44.5 33.3 32
TPHA-1616-S 1" x 1" 1-11 1 5/16-12 46 33.3 41
TPHA-2020-S 1 1/4 x 1 1/4 1 1/4-11 1 5/8-12 51 41 50
TPHA-2424-S 1 1/2 x 1 1/2 1 1/2-11 1 7/8-12 57 50 57
TPHA-3232-S 2" x 2" 2-11 2 1/2-12 66 65 72
