Weld nipples European size

Weld nipples European size



Marked with 『 ★ 』 for customized products

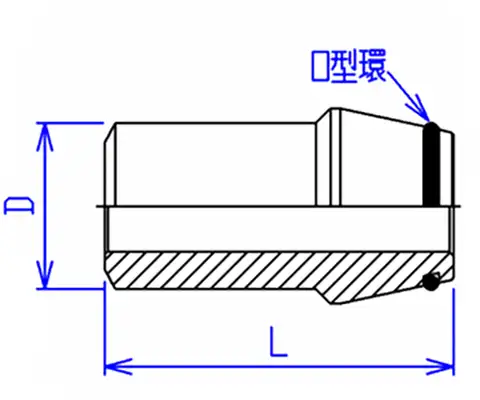

Item No. Spec. L D O-Ring
OD
TSKA-06 6 31 6 4 x 1.5
TSKA-08 8 31 8 6.5 x 1.5
TSKA-10 10 32.5 10 8.5 x 1.5
TSKA-12 12 32.5 12 10 x 1.5
★TSKA-14 14 38 14 12 x 2
TSKA-15 15 34 15 12.5 x 2
TSKA-16 16 39 16 14 x 2
TSKA-18 18 35.5 18 16 x 2
TSKA-20 20 45 20 17 x 2.5
TSKA-22 22 38.5 22 20 x 2
TSKA-25 25 49.5 25 22 x 2.5
TSKA-28 28 41.5 28 26 x 2
TSKA-30 30 52 30 27 x 2.5
TSKA-35 35 47.5 35 32 x 2.5
TSKA-38 38 56.5 38 35 x 2.5
TSKA-42 42 47.5 42 39 x 2.5
