Male stud connector - Male PF thread o-ring / ORFS tube end

Male stud connector - Male PF thread o-ring / ORFS tube end



Marked with 『 ★ 』 for customized products

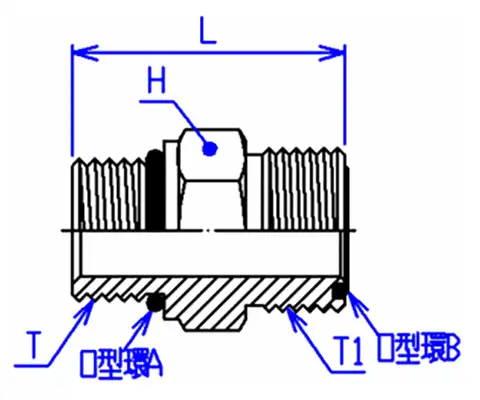

Item No. Spec. T T1 L H O-Ring A O-ring B
PF x ORFS PF(thread) UNF/UNS/UN(thread)
TFOR-0404-S 1/4 x 1/4 1/4-19 9/16-18 32 19 P11 AS011
TFOR-0406-S 1/4 x 3/8 1/4-19 11/16-16 34 19 P11 AS012
TFOR-0604-S 3/8 x 1/4 3/8-19 9/16-18 34.5 22 P14 AS011
TFOR-0606-S 3/8 x 3/8 3/8-19 11/16-16 36.5 22 P14 AS012
TFOR-0608-S 3/8 x 1/4 3/8-19 13/16-16 37.5 22 P14 AS014
TFOR-0806-S 1/2 x 3/8 1/2-14 11/16-16 40 27 P18 AS012
TFOR-0808-S 1/2 x 1/2 1/2-14 13/16-16 41 27 P18 AS014
TFOR-0810-S 1/2 x 5/8 1/2-14 1-14 43 27 P18 AS016
TFOR-0812-S 1/2 x 3/4 1/2-14 1 3/16-12 44 32 P18 AS018
★TFOR-1208-S 3/4 x 1/2 3/4-14 13/16-12 43 32 P24 AS014
★TFOR-1210-S 3/4 x 5/8 3/4-14 1-14 45 32 P24 AS016
TFOR-1212-S 3/4 x 3/4 3/4-14 1 3/16-12 46 32 P24 AS018
TFOR-1216-S 3/4 x 1" 3/4-14 1 7/16-12 48 41 P24 AS021
TFOR-1612-S 1" x 3/4 1-11 1 3/16-12 50 41 P30 AS018
TFOR-1616-S 1" x 1" 1-11 1 7/16-12 51 41 P30 AS021
TFOR-2020-S 1 1/4 x 1 1/4 1 1/4-11 1 11/16-12 56 50 P38 AS025
★TFOR-2424-S 1 1/2 x 1 1/2 1 1/2-11 2-12 57 55 P44 AS029
