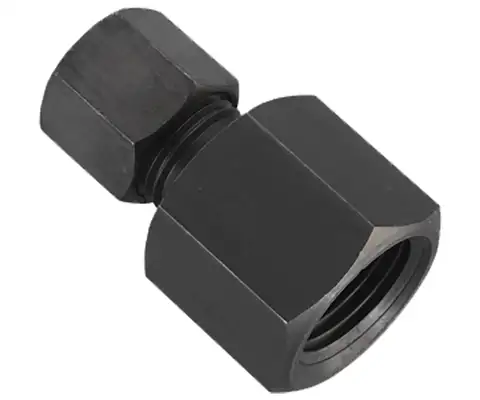

Fmale connector Japanese size - Female PT thread / Tube end

Fmale connector Japanese size - Female PT thread / Tube end



Marked with 『 ★ 』 for customized products

Item No. Spec. T T1 L t H H1
PT female thread x O.D. PT(thread) (thread)
TPED-0206-S 1/8 x 6 1/8-28 M12-1.5 26 7 14 14
TPED-0208-S 1/8 x 8 1/8-28 M14-1.5 26 7 14 17
TPED-0406-S 1/4 x 6 1/4-19 M12-1.5 28 7 19 14
TPED-0408-S 1/4 x 8 1/4-19 M14-1.5 28 7 19 17
TPED-0410-S 1/4 x 10 1/4-19 M16-1.5 29 7 19 19
TPED-0412-S 1/4 x 12 1/4-19 M18-1.5 29 7 19 22
TPED-0606-S 3/8 x 6 3/8-19 M12-1.5 30 7 23 14
TPED-0608-S 3/8 x 8 3/8-19 M14-1.5 30 7 23 17
TPED-0610-S 3/8 x 10 3/8-19 M16-1.5 31 7 23 19
TPED-0612-S 3/8 x 12 3/8-19 M18-1.5 31 7 23 22
TPED-0615-S 3/8 x 15 3/8-19 M22-1.5 33 7.5 23 27
TPED-0810-S 1/2 x 10 1/2-14 M16-1.5 36 7 27 19
TPED-0812-S 1/2 x 12 1/2-14 M18-1.5 36 7 27 22
TPED-0815-S 1/2 x 15 1/2-14 M22-1.5 38 7.5 27 27
TPED-0818-S 1/2 x 18 1/2-14 M26-1.5 38 8 27 32
⭑ TPED-1220-S 3/4 x 20 3/4-14 M30-1.5 42 8 33.3 36
