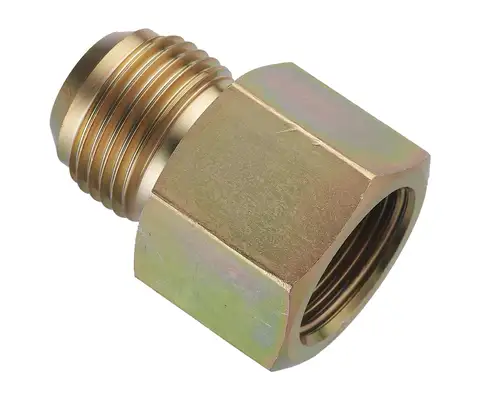

Female connector - JIC37º flare end / Female PT thread

Female connector - JIC37º flare end / Female PT thread

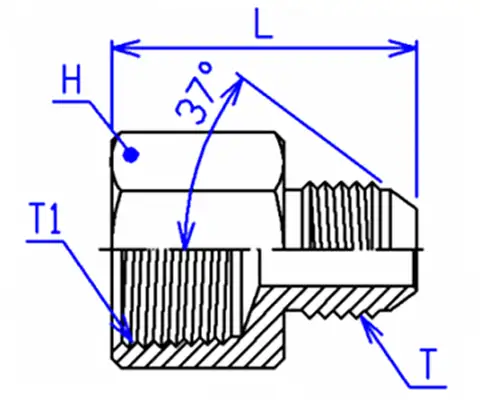

Item No. Spec. T T1 L H
TH x PT female thread UNF/UN (thread) PT (thread)
THPE-0402-S 1/4 x 1/8 7/16-20 1/8-28 31 14
THPE-0404-S 1/4 x 1/4 7/16-20 1/4-19 33 17
THPE-0406-S 1/4 x 3/8 7/16-20 3/8-19 34 21
THPE-0408-S 1/4 x 1/2 7/16-20 1/2-14 38 27
THPE-0604-S 3/8 x 1/4 9/16-18 1/4-19 33.5 17
THPE-0606-S 3/8 x 3/8 9/16-18 3/8-19 35 21
THPE-0608-S 3/8 x 1/2 9/16-18 1/2-14 39 27
THPE-0804-S 1/2 x 1/4 3/4-16 1/4-19 35 21
THPE-0806-S 1/2 x 3/8 3/4-16 3/8-19 37 21
THPE-0808-S 1/2 x 1/2 3/4-16 1/2-14 41 27
THPE-0812-S 1/2 x 3/4 3/4-16 3/4-14 44 33.3
THPE-1008-S 5/8 x 1/2 7/8-14 1/2-14 43 27
THPE-1012-S 5/8 x 3/4 7/8-14 3/4-14 46 33.3
THPE-1208-S 3/4 x 1/2 1 1/16-12 1/2-14 46 27
THPE-1212-S 3/4 x 3/4 1 1/16-12 3/4-14 49 33.3
THPE-1612-S 1" x 3/4 1 5/16-12 3/4-14 50 33.3
THPE-1616-S 1" x 1" 1 5/16-12 1-11 51 41
THPE-2016-S 1 1/4 x 1" 1 5/8-12 1-11 53 41
THPE-2020-S 1 1/4 x 1 1/4 1 5/8-12 1 1/4-11 55 50
THPE-2424-S 1 1/2 x 1 1/2 1 7/8-12 1 1/2-11 58 60
THPE-3232-S 2" x 2" 2 1/2-12 2-11 70 72
