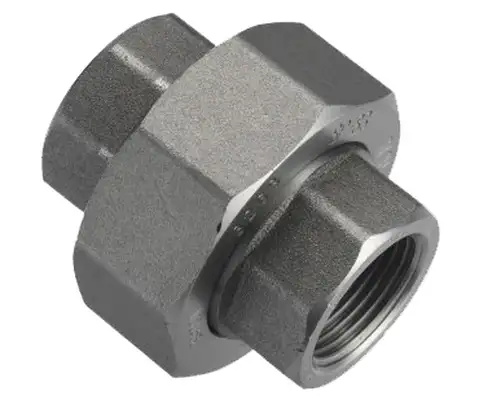

Female thread union - Female PT thread

Female thread union - Female PT thread

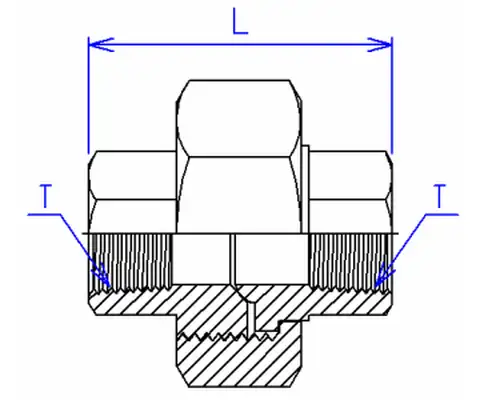

Item No. Spec. T L H
PT x PT PT(thread)
TUPE-04 1/4 x 1/4 1/4-19 41 40.3
TUPE-06 3/8 x 3/8 3/8-19 46 40.3
TUPE-08 1/2 x 1/2 1/2-14 49 47
TUPE-12 3/4 x 3/4 3/4-14 57 54
TUPE-16 1" x 1" 1-11 62 64
TUPE-20 1 1/4 x 1 1/4 1 1/4-11 71 75.5
TUPE-24 1 1/2 x 1 1/2 1 1/2-11 76.5 83
TUPE-32 2" x 2" 2-11 86 100
