Swivel nut connector - Male PT thread / JIS30˚ flare female swivel end

Swivel nut connector - Male PT thread / JIS30˚ flare female swivel end

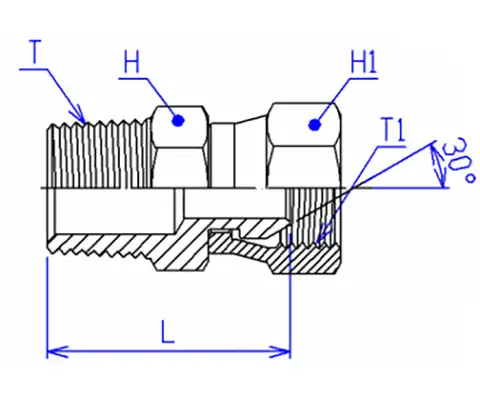

Item No. Spec. T T1 L H H1
PT x PF PT (thread) PF (thread)
TPFA-0404-S 1/4 x 1/4 1/4-19 1/4-19 30.5 14 19
TPFA-0606-S 3/8 x 3/8 3/8-19 3/8-19 34 17 22
TPFA-0808-S 1/2 x 1/2 1/2-14 1/2-14 40 21 26
TPFA-1212-S 3/4 x 3/4 3/4-14 3/4-14 44 27 32
TPFA-1616-S 1" x 1" 1-11 1-11 49.5 33.3 41
TPFA-2020-S 1 1/4 x 1 1/4 1 1/4-11 1 1/4-11 58.5 41 50
TPFA-2424-S 1 1/2 x 1 1/2 1 1/2-11 1 1/2-11 63 50 57
TPFA-3232-S 2" x 2" 2-11 2-11 71 65 68
