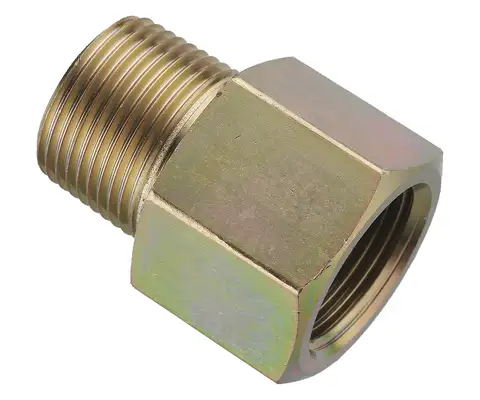

Female thread connector - Male PT thread / Female PT thread

Female thread connector - Male PT thread / Female PT thread

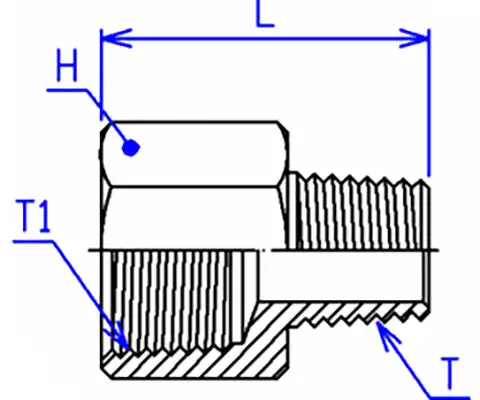

Item No. Spec. T T1 L H
PT x PT female thread PT (thread) PT (thread)
TPTE-0202-S 1/8 x 1/8 1/8-28 1/8-28 28 14
TPTE-0204-S 1/8 x 1/4 1/8-28 1/4-19 29.5 17
TPTE-0402-S 1/4 x 1/8 1/4-19 1/8-28 29 14
TPTE-0404-S 1/4 x 1/4 1/4-19 1/4-19 30 17
TPTE-0406-S 1/4 x 3/8 1/4-19 3/8-19 34 21
TPTE-0408-S 1/4 x 1/2 1/4-19 1/2-14 37 27
TPTE-0604-S 3/8 x 1/4 3/8-19 1/4-19 31 17
TPTE-0606-S 3/8 x 3/8 3/8-19 3/8-19 35 21
TPTE-0608-S 3/8 x 1/2 3/8-19 1/2-14 39 27
TPTE-0804-S 1/2 x 1/4 1/2-14 1/4-19 35 21
TPTE-0806-S 1/2 x 3/8 1/2-14 3/8-19 35.5 21
TPTE-0808-S 1/2 x 1/2 1/2-14 1/2-14 42 27
TPTE-0812-S 1/2 x 3/4 1/2-14 3/4-14 45 33.3
TPTE-1208-S 3/4 x 1/2 3/4-14 1/2-14 44 27
TPTE-1212-S 3/4 x 3/4 3/4-14 3/4-14 47 33.3
TPTE-1216-S 3/4 x 1" 3/4-14 1-11 48 41
TPTE-1612-S 1" x 3/4 1-11 3/4-14 49 33.3
TPTE-1616-S 1" x 1" 1-11 1-11 50 41
TPTE-2016-S 1 1/4 x 1" 1 1/4-11 1-11 52 41
TPTE-2020-S 1 1/4 x 1 1/4 1 1/4-11 1 1/4-11 54 50
TPTE-2424-S 1 1/2 x 1 1/2 1 1/2-11 1 1/2-11 55 60
TPTE-3232-S 2" x 2" 2-11 2-11 66 72
