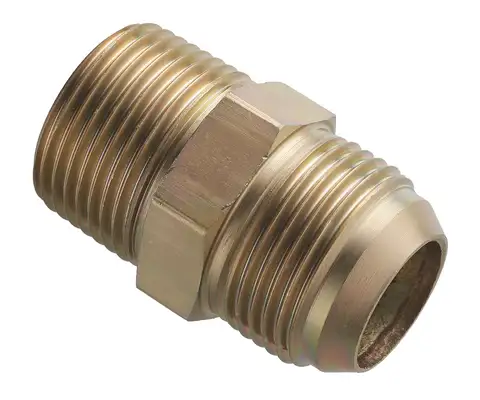

直型 PT x PF凸 接頭

直型 PT x PF凸 接頭



標『 ★ 』為訂製品

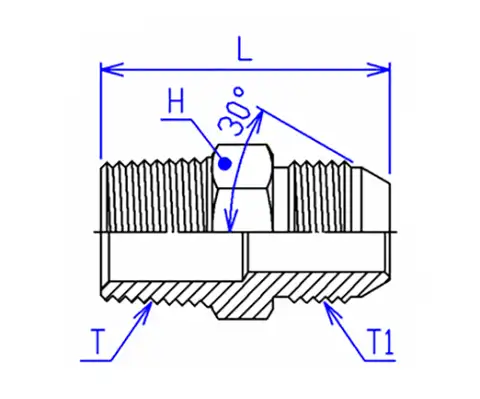

  編號 規格 T T1 L H
PT X PF凸 PT (thread) PF (thread)
TPF-0204-S 1/8 x 1/4 1/8-28 1/4-19 32 14
TPF-0404-S 1/4 x 1/4 1/4-19 1/4-19 36.5 14
TPF-0406-S 1/4 x 3/8 1/4-19 3/8-19 35 17
⭑TPF-0408-S 1/4 x 1/2 1/4-19 1/2-14 41.5 21
TPF-0604-S 3/8 x 1/4 3/8-19 1/4-19 35 17
TPF-0606-S 3/8 x 3/8 3/8-19 3/8-19 39.5 17
TPF-0608-S 3/8 x 1/2 3/8-19 1/2-14 39 21
TPF-0804-S 1/2 x 1/4 1/2-14 1/4-19 38 21
TPF-0806-S 1/2 x 3/8 1/2-14 3/8-19 39 21
TPF-0808-S 1/2 x 1/2 1/2-14 1/2-14 46.5 21
TPF-0812-S 1/2 x 3/4 1/2-14 3/4-14 48.5 27
TPF-1208-S 3/4 x 1/2 3/4-14 1/2-14 49 27
TPF-1212-S 3/4 x 3/4 3/4-14 3/4-14 50.5 27
TPF-1216-S 3/4 x 1" 3/4-14 1-11 53.5 33.3
TPF-1612-S 1" x 3/4 1-11 3/4-14 54.5 33.3
TPF-1616-S 1" x 1" 1-11 1-11 55.5 33.3
TPF-1620-S 1" x 1 1/4 1-11 1 1/4-11 61 41
TPF-2016-S 1 1/4 x 1" 1 1/4-11 1-11 58.5 41
TPF-2020-S 1 1/4 x 1 1/4 1 1/4-11 1 1/4-11 63 41
TPF-2024-S 1 1/4 x 1 1/2 1 1/4-11 1 1/2-11 65 50
TPF-2420-S 1 1/2 x 1 1/4 1 1/2-11 1 1/4-11 66 50
TPF-2424-S 1 1/2 x 1 1/2 1 1/2-11 1 1/2-11 66 50
⭑ TPF-2432-S 1 1/2 x 2" 1 1/2-11 2-11 75 63
⭑ TPF-3224-S 2" x 1 1/2 2-11 1 1/2-11 74 63
TPF-3232-S 2" x 2" 2-11 2-11 80 65
TPF-4040-S 2 1/2 x 2 1/2 2 1/2-11 2 1/2-11 85 77
