PT x ORFS 接頭

PT x ORFS 接頭



標『 ★ 』為訂製品

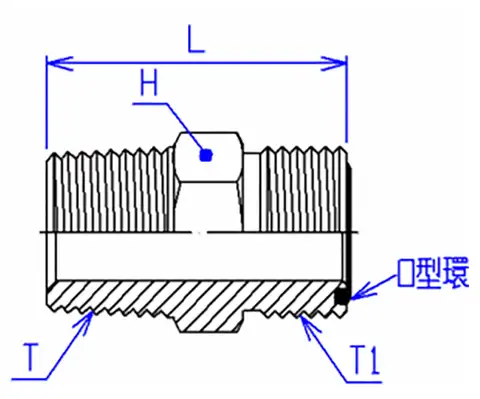

  編號 規格 T T1 L H O型環
PT X ORFS PT(thread) UNF/UNS/UN(thread)
TPR-0204-S 1/8 x 1/4 1/8-28 9/16-18 28 17 AS011
TPR-0404-S 1/4 x 1/4 1/4-19 9/16-18 31 17 AS011
TPR-0406-S 1/4 x 3/8 1/4-19 11/16-16 33 19 AS012
TPR-0604-S 3/8 x 1/4 3/8-19 9/16-18 33 17 AS011
TPR-0606-S 3/8 x 3/8 3/8-19 11/16-16 35 19 AS012
TPR-0608-S 3/8 x 1/2 3/8-19 13/16-16 37 22 AS014
TPR-0806-S 1/2 x 3/8 1/2-14 11/16-16 39 22 AS012
TPR-0808-S 1/2 x 1/2 1/2-14 13/16-16 40 22 AS014
TPR-0810-S 1/2 x 5/8 1/2-14 1-14 43 27 AS016
TPR-0812-S 1/2 x 3/4 1/2-14 1 3/16-12 45 32 AS018
TPR-1208-S 3/4 x 1/2 3/4-14 13/16-16 43 27 AS014
★TPR-1210-S 3/4 x 5/8 3/4-14 13/16-16 45 27 AS016
TPR-1212-S 3/4 x 3/4 3/4-14 1 3/16-12 47 32 AS018
TPR-1216-S 3/4 x 1" 3/4-14 1 7/16-12 49 38 AS021
TPR-1612-S 1" x 3/4 1-11 1 3/16-12 50 33.3 AS018
TPR-1616-S 1" x 1" 1-11 1 7/16-12 51 38 AS021
TPR-2020-S 1 1/4 x 1 1/4 1 1/4-11 1 11/16-12 56 46 AS025
★TPR-2424-S 1 1/2 x 1 1/2 1 1/2-11 2-12 58 55 AS029
