直型 PF凹 x PF凹 接頭

直型 PF凹 x PF凹 接頭

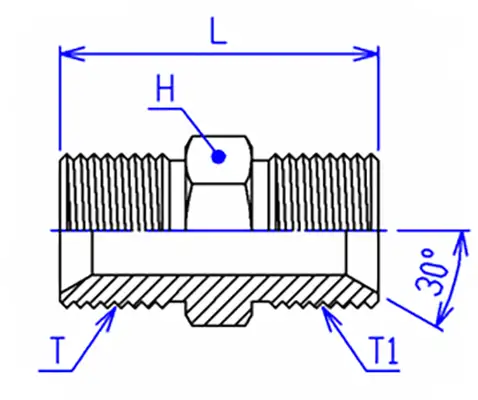

  編號 規格 T T1 L H
PF凹 x PF凹 PF (thread) PF (thread)
TGG-0404-S 1/4 x 1/4 1/4-19 1/4-19 34.5 14
TGG-0604-S 3/8 x 1/4 3/8-19 1/4-19 35.5 17
TGG-0606-S 3/8 x 3/8 3/8-19 3/8-19 36 17
TGG-0806-S 1/2 x 3/8 1/2-14 3/8-19 39 21
TGG-0808-S 1/2 x 1/2 1/2-14 1/2-14 40 21
TGG-1208-S 3/4 x 1/2 3/4-14 1/2-14 47 27
TGG-1212-S 3/4 x 3/4 3/4-14 3/4-14 49 27
TGG-1612-S 1" x 3/4 1-11 3/4-14 53 33.3
TGG-1616-S 1" x 1" 1-11 1-11 55 33.3
TGG-2016-S 1 1/4 x 1" 1 1/4-11 1-11 58 41
TGG-2020-S 1 1/4 x 1 1/4 1 1/4-11 1 1/4-11 60 41
TGG-2424-S 1 1/2 x 1 1/2 1 1/2-11 1 1/2-11 70 50
TGG-3232-S 2" x 2" 2-11 2-11 83 65
