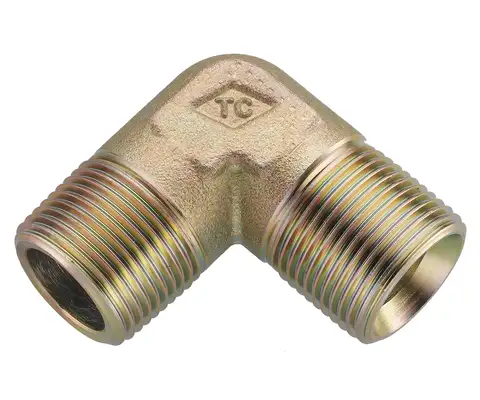

L型 PT x PF凹 接頭

L型 PT x PF凹 接頭

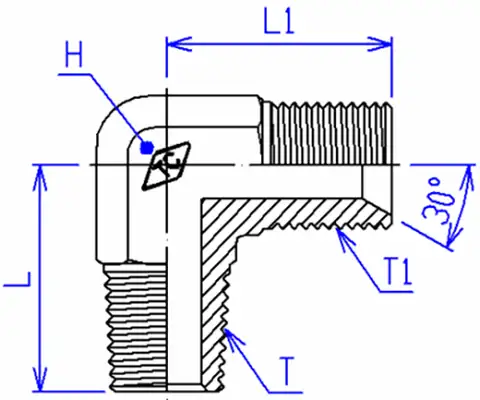

  編號 規格 T T1 L L1 H
PT x PF凹 PT(thread) PF(thread)
TPG-0204-L 1/8 x 1/4 1/8-28 1/4-19 22 26.5 14
TPG-0404-L 1/4 x 1/4 1/4-19 1/4-19 26.5 26.5 14
TPG-0406-L 1/4 x 3/8 1/4-19 3/8-19 29 29 17
TPG-0604-L 3/8 x 1/4 3/8-19 1/4-19 29 29 17
TPG-0606-L 3/8 x 3/8 3/8-19 3/8-19 31 31 17
TPG-0608-L 3/8 x 1/2 3/8-19 1/2-14 34 34 21
TPG-0806-L 1/2 x 3/8 1/2-14 3/8-19 34 34 21
TPG-0808-L 1/2 x 1/2 1/2-14 1/2-14 34 34 22
TPG-0812-L 1/2 x 3/4 1/2-14 3/4-14 39 42 27
TPG-1208-L 3/4 x 1/2 3/4-14 1/2-14 42 39 27
TPG-1212-L 3/4 x 3/4 3/4-14 3/4-14 42 42 27
TPG-1216-L 3/4 x 1" 3/4-14 1-11 46 46 33
TPG-1612-L 1" x 3/4 1-11 3/4-14 46 46 33
TPG-1616-L 1" x 1" 1-11 1-11 50.5 50.5 33
TPG-1620-L 1" x 1 1/4 1-11 1 1/4-11 57 57 41
TPG-2016-L 1 1/4 x 1" 1 1/4-11 1-11 57 57 41
TPG-2020-L 1 1/4 x 1 1/4 1 1/4-11 1 1/4-11 61 61 41
TPG-2424-L 1 1/2 x 1 1/2 1 1/2-11 1 1/2-11 66 66 50
TPG-3232-L 2" x 2" 2-11 2-11 76 76 63
