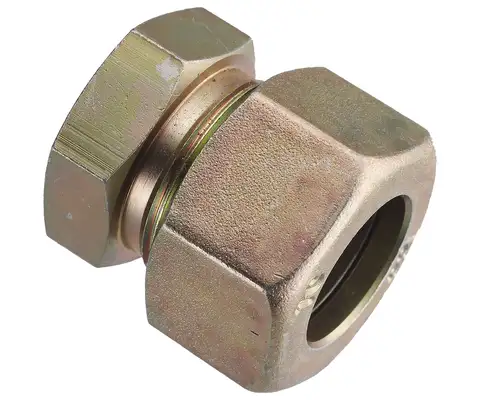

O.D. 鋼管塞頭 (歐規)

O.D. 鋼管塞頭 (歐規)



標『 ★ 』為訂製品

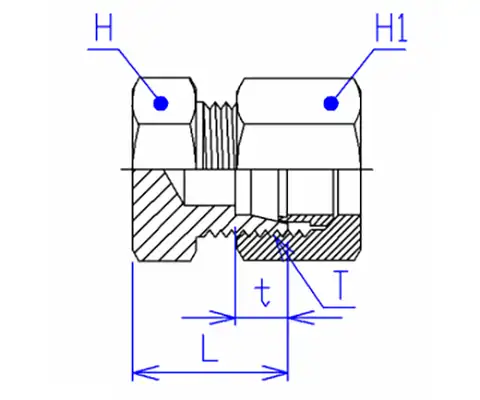

  編號 規格 T L t H H1
O.D. (thread)
TD-06L-H 6L M12-1.5 18 7 14 14
TD-08L-H 8L M14-1.5 18 7 17 17
TD-10L-H 10L M16-1.5 19.5 7 19 19
TD-12L-H 12L M18-1.5 19.5 7 19 22
TD-15L-H 15L M22-1.5 22 7.5 23 27
TD-18L-H 18L M26-1.5 23 8 27 32
TD-22L-H 22L M30-2..0 24 7.5 32 36
TD-28L-H 28L M36-2..0 26 7.5 41 41
TD-35L-H 35L M45-2..0 29 10.5 46 50
TD-42L-H 42L M52-2..0 30 11 55 60
TD-06S-H 6S M14-1.5 19 7 14 17
TD-08S-H 8S M16-1.5 19 7 17 19
TD-10S-H 10S M18-1.5 19.5 7.5 19 22
TD-12S-H 12S M20-1.5 20 7.5 22 24
⭑ TD-14S-H 14S M22-1.5 22 8 24 27
TD-16S-H 16S M24-1.5 23 8.5 27 30
TD-20S-H 20S M30-2.0 26 10.5 32 36
TD-25S-H 25S M36-2.0 30 12 41 46
TD-30S-H 30S M42-2.0 33 13.5 46 50
TD-38S-H 38S M52-2.0 36 16 55 60
