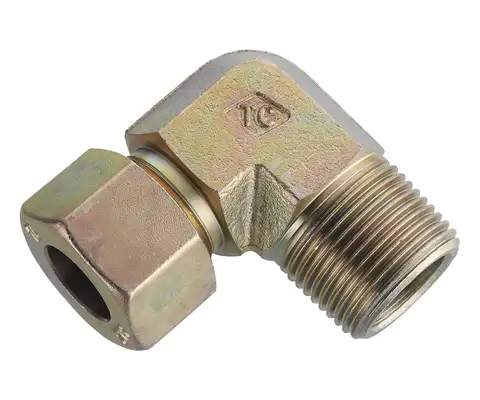

L型 PT x O.D. 鋼管接頭 (歐規L規範)

L型 PT x O.D. 鋼管接頭 (歐規L規範)

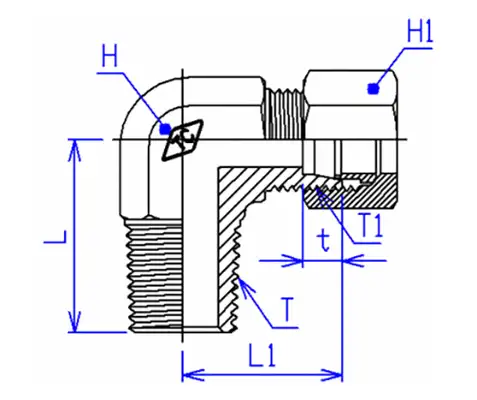

  編號 規格 T T1 L L1 t H H1
PT X O.D. PT (thread) (thread)
TPD-0206L-L 1/8 x 6L 1/8-28 M12-1.5 22 22 7 14 14
TPD-0208L-L 1/8 x 8L 1/8-28 M14-1.5 22 22 7 14 17
TPD-0406L-L 1/4 x 6L 1/4-19 M12-1.5 26.5 22 7 14 14
TPD-0408L-L 1/4 x 8L 1/4-19 M14-1.5 26.5 22 7 14 17
TPD-0410L-L 1/4 x 10L 1/4-19 M16-1.5 28 24 7 17 19
TPD-0412L-L 1/4 x 12L 1/4-19 M18-1.5 28 24 7 17 22
TPD-0606L-L 3/8 x 6L 3/8-19 M12-1.5 28 24 7 17 14
TPD-0608L-L 3/8 x 8L 3/8-19 M14-1.5 28 24 7 17 17
TPD-0610L-L 3/8 x 10L 3/8-19 M16-1.5 28 24 7 17 19
TPD-0612L-L 3/8 x 12L 3/8-19 M18-1.5 29.5 27 7 19 22
TPD-0812L-L 1/2 x 12L 1/2-14 M18-1.5 32 27.5 7 21 22
TPD-0815L-L 1/2 x 15L 1/2-14 M22-1.5 32 27.5 7.5 21 27
TPD-0818L-L 1/2 x 18L 1/2-14 M26-1.5 37.5 32 8 24 32
TPD-0822L-L 1/2 x 22L 1/2-14 M30-2.0 42 35 7.5 27 36
TPD-1222L-L 3/4 x 22L 3/4-14 M30-2.0 42 35 7.5 27 36
TPD-1628L-L 1" x 28L 1-11 M36-2.0 49 38 7.5 34 41
TPD-2035L-L 1 1/4 x 35L 1 1/4-11 M45-2.0 61 52 10.5 50 50
TPD-2442L-L 1 1/4 x 42L 1 1/2-11 M52-2.0 61 52 11 50 60
