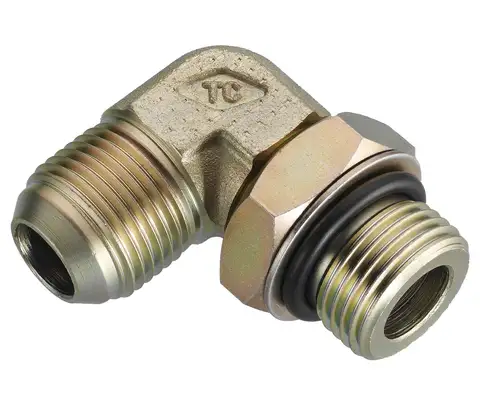

L型 TH可調式 x TH 接頭

L型 TH可調式 x TH 接頭

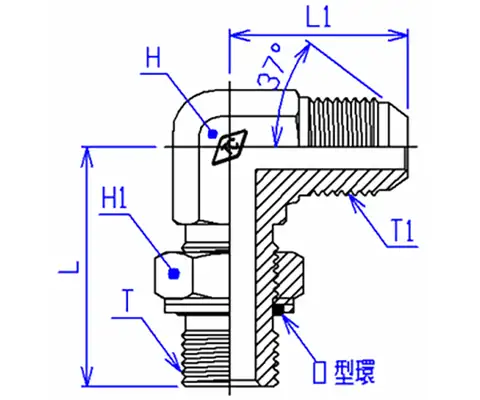

  編號 規格 T T1 L L1 H H1 O型環
TH可調 X TH UNF/UN(thread) UNF/UN(thread)
THOH-0404-L 1/4 x 1/4 7/16-20 7/16-20 32 26.5 14 17 P9
THOH-0406-L 1/4 x 3/8 7/16-20 9/16-18 32 26.5 14 17 P9
THOH-0604-L 3/8 x 1/4 9/16-18 7/16-20 32 26.5 14 19 P12
THOH-0606-L 3/8 x 3/8 9/16-18 9/16-18 32 26.5 14 19 P12
THOH-0608-L 3/8 x 1/2 9/16-18 3/4-16 37 30 19 19 P12
THOH-0806-L 1/2 x 3/8 3/4-16 9/16-18 40 34.5 21 24 P16
THOH-0808-L 1/2 x 1/2 3/4-16 3/4-16 40 34.5 21 24 P16
THOH-0810-L 1/2 x 5/8 3/4-16 7/8-14 41 34.5 23 24 P16
THOH-0812-L 1/2 x 3/4 3/4-16 1 1/16-12 44 40 28 24 P16
THOH-1008-L 5/8 x 1/2 7/8-14 3/4-16 42 34.5 23 27 P19
THOH-1010-L 5/8 x 5/8 7/8-14 7/8-14 42 34.5 23 27 P19
THOH-1012-L 5/8 x 3/4 7/8-14 1 1/16-12 45 40 28 27 P19
THOH-1208-L 3/4 x 1/2 1 1/16-12 3/4-16 49 40 28 35 P24
THOH-1210-L 3/4 x 5/8 1 1/16-12 7/8-14 49 40 28 35 P24
THOH-1212-L 3/4 x 3/4 1 1/16-12 1 1/16-12 49 40 28 35 P24
THOH-1216-L 3/4 x 1" 1 1/16-12 1 5/16-12 53 50 34 35 P24
THOH-1612-L 1" x 3/4 1 5/16-12 1 1/16-12 56 50 34 41 P30
THOH-1616-L 1" x 1" 1 5/16-12 1 5/16-12 56 50 34 41 P30
THOH-2020-L 1 1/4 x 1 1/4 1 5/8-12 1 5/8-12 61 61 41 50 P38
THOH-2424-L 1 1/2 x 1 1/2 1 7/8-12 1 7/8-12 66 66 50 55 P44
