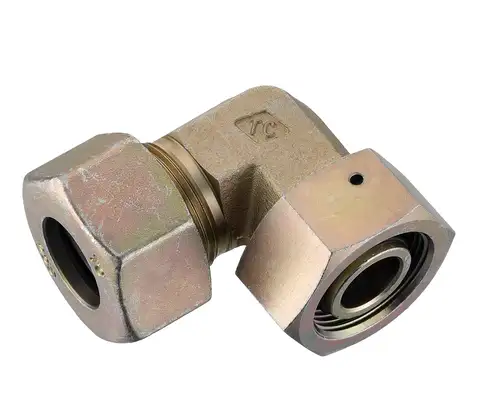

L型 O.D. x O.D.線栓式鋼管接頭

L型 O.D. x O.D.線栓式鋼管接頭



標『 ★ 』為訂製品

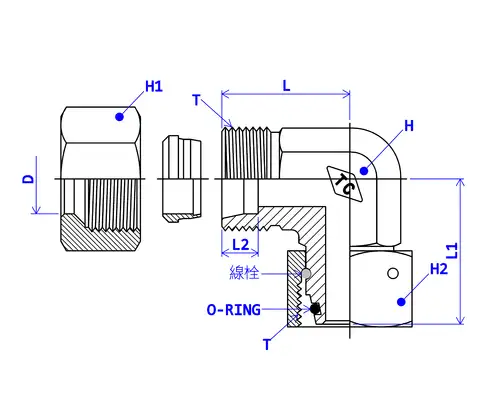

  編號 規格 T L L1 L2 D H H1 H2
Tube O.D. (thread)
TDK-06L-L 6L M12-1.5 19 25.5 7 6 14 14 14
TDK-08L-L 8L M14-1.5 21 27 7 8 14 17 17
TDK-10L-L 10L M16-1.5 22 28.5 7 10 17 19 19
TDK-12L-L 12L M18-1.5 24 29 7 12 17 22 22
TDK-15L-L 15L M22-1.5 28 32 7.5 15 21 27 27
TDK-18L-L 18L M26-1.5 31 35 8 18 24 32 32
TDK-22L-L 22L M30-2.0 35 37 7.5 22 27 36 36
TDK-28L-L 28L M36-2.0 38 41 7.5 28 34 41 41
⭑ TDK-35L-L 35L M45-2.0 45 49 10.5 35 50 50 50
⭑ TDK-42L-L 42L M52-2.0 55 54 11 42 50 60 60
TDK-06S-L 6S M14-1.5 23 26 7 6 14 17 17
TDK-08S-L 8S M16-1.5 24 27 7 8 17 19 19
TDK-10S-L 10S M18-1.5 25 29 7.5 10 17 22 22
TDK-12S-L 12S M20-1.5 29 30 7.5 12 21 24 24
TDK-16S-L 16S M24-1.5 33 35 8.5 16 24 30 30
TDK-20S-L 20S M30-2.0 37 42 10.5 20 27 36 36
TDK-25S-L 25S M36-2.0 41 46.5 12 25 34 46 46
TDK-30S-L 30S M42-2.0 49 50 13.5 30 41 50 50
⭑ TDK-38S-L 38S M52-2.0 57 56 16 38 50 60 60
