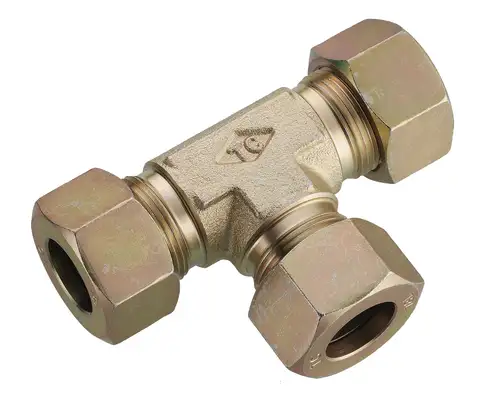

T型 O.D. x O.D. x O.D. 鋼管接頭(歐規)

T型 O.D. x O.D. x O.D. 鋼管接頭(歐規)



標『 ★ 』為訂製品

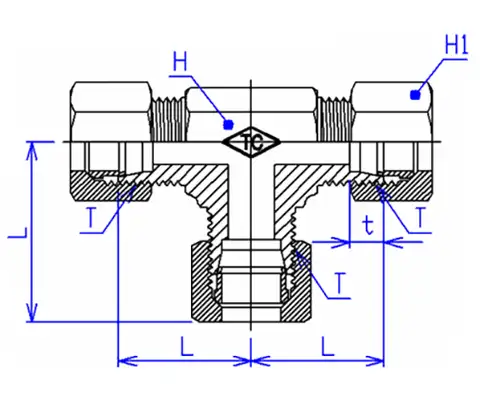

  編號 規格 T L t H H1
O.D. x O.D. x O.D. (thread)
TDD-06L-T 6L x 6L X 6L M12-1.5 22 7 14 14
TDD-08L-T 8L x 8L X 8L M14-1.5 22 7 14 17
TDD-10L-T 10L x 10L X 10L M16-1.5 25 7 19 19
TDD-12L-T 12L x 12L X 12L M18-1.5 25 7 19 22
TDD-15L-T 15L x 15L X 15L M22-1.5 29 7.5 23 27
TDD-18L-T 18L x 18L X 18L M26-1.5 32 8 27 32
TDD-22L-T 22L x 22L X 22L M30-2.0 35 7.5 27 36
TDD-28L-T 28L x 28L X 28L M36-2.0 38 7.5 36 41
TDD-35L-T 35L x 35L X 35L M45-2.0 45 10.5 41 50
TDD-42L-T 42L x 42L X 42L M52-2.0 55 11 50 60
TDD-06S-T 6S x 6S x 6S M14-1.5 22 7 14 17
TDD-08S-T 8S x 8S x 8S M16-1.5 24 7 19 19
TDD-10S-T 10S x 10S x 10S M18-1.5 25 7.5 19 22
TDD-12S-T 12S x 12S x 12S M20-1.5 27.5 7.5 23 24
⭑ TDD-14S-T 14S x 14S x 14S M22-1.5 29 8 23 27
TDD-16S-T 16S x 16S x 16S M24-1.5 33 8.5 27 30
TDD-20S-T 20S x 20S x 20S M30-2.0 37 10.5 27 36
TDD-25S-T 25S x 25S x 25S M36-2.0 42 12 36 46
TDD-30S-T 30S x 30S x 30S M42-2.0 49 13.5 41 50
TDD-38S-T 38S x 38S x 38S M52-2.0 57 16 50 60
