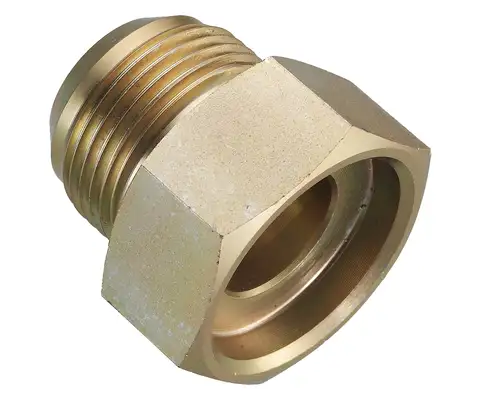

TH 套焊接頭

TH 套焊接頭

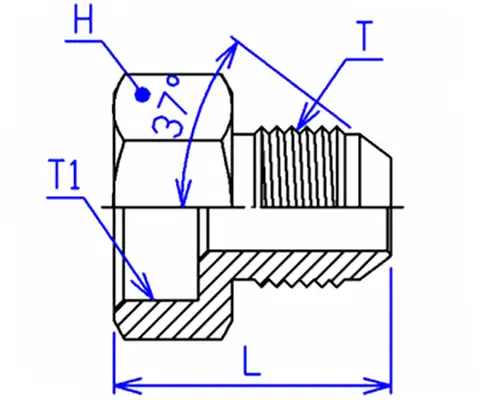

  編號 規格 T T1 L H
TH x 內焊 UNF/UN(thread) 內焊
THSE-0404-S 1/4 x 1/4 7/16-20 1/4 28 23
THSE-0606-S 3/8 x 3/8 9/16-18 3/8 29 27
THSE-0808-S 1/2 x 1/2 3/4-16 1/2 32 32
THSE-1212-S 3/4 x 3/4 1 1/16-12 3/4 37 36
THSE-1616-S 1" x 1" 1 5/16-12 1" 43 41
THSE-2020-S 1 1/4 x 1 1/4 1 5/8-12 1 1/4 45 50
