直型 PT x PF凹 接頭

直型 PT x PF凹 接頭



標『 ★ 』為訂製品

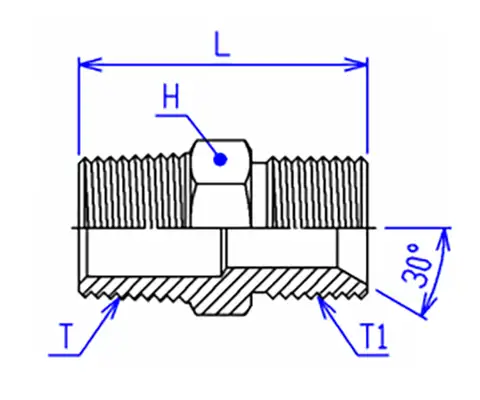

  編號 規格 T T1 L H
PT x PF凹 PT (thread) PF (thread)
TPG-0204-S 1/8 x 1/4 1/8-28 1/4-19 31.5 14
TPG-0404-S 1/4 x 1/4 1/4-19 1/4-19 33 14
TPG-0406-S 1/4 x 3/8 1/4-19 3/8-19 35 17
TPG-0408-S 1/4 x 1/2 1/4-19 1/2-14 38 21
TPG-0604-S 3/8 x 1/4 3/8-19 1/4-19 35 17
TPG-0606-S 3/8 x 3/8 3/8-19 3/8-19 37 17
TPG-0608-S 3/8 x 1/2 3/8-19 1/2-14 39 21
TPG-0804-S 1/2 x 1/4 1/2-14 1/4-19 38 21
TPG-0806-S 1/2 x 3/8 1/2-14 3/8-19 39 21
TPG-0808-S 1/2 x 1/2 1/2-14 1/2-14 44.5 21
TPG-0812-S 1/2 x 3/4 1/2-14 3/4-14 47 27
TPG-1208-S 3/4 x 1/2 3/4-14 1/2-14 47 27
TPG-1212-S 3/4 x 3/4 3/4-14 3/4-14 49 27
TPG-1216-S 3/4 x 1" 3/4-14 1-11 53 33.3
TPG-1612-S 1" x 3/4 1-11 3/4-14 53 33.3
TPG-1616-S 1" x 1" 1-11 1-11 55 33.3
TPG-1620-S 1" x 1 1/4 1-11 1 1/4-11 58 41
TPG-2016-S 1 1/4 x 1" 1 1/4-11 1-11 58 41
TPG-2020-S 1 1/4 x 1 1/4 1 1/4-11 1 1/4-11 60 41
TPG-2024-S 1 1/4 x 1 1/2 1 1/4-11 1 1/2-11 66 50
TPG-2420-S 1 1/2 x 1 1/4 1 1/2-11 1 1/4-11 63 50
TPG-2424-S 1 1/2 x 1 1/2 1 1/2-11 1 1/2-11 67 50
⭑ TPG-2432-S 1 1/2 x 2" 1 1/2-11 2-11 75 63
⭑ TPG-3224-S 2" x 1 1/2 2-11 1 1/2-11 75 63
TPG-3232-S 2" x 2" 2-11 2-11 80 65
TPG-4040-S 2 1/2 x 2 1/2 2 1/2-11 2 1/2-11 85 77
