45度 PT x PF凸 接頭

45度 PT x PF凸 接頭

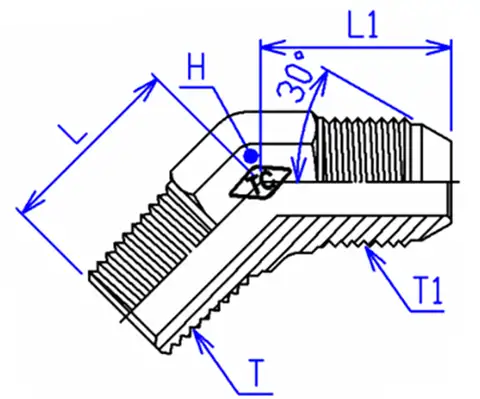

  編號 規格 T T1 L L1 H
PT x PF凸 PT (thread) PF (thread)
TPF-0404-F 1/4 x 1/4 1/4-19 1/4-19 22 22 14
TPF-0406-F 1/4 x 3/8 1/4-19 3/8-19 24 24 17
TPF-0604-F 3/8 x 1/4 3/8-19 1/4-19 24 24 17
TPF-0606-F 3/8 x 3/8 3/8-19 3/8-19 24 24 17
TPF-0608-F 3/8 x 1/2 3/8-19 1/2-14 27 27 23
TPF-0806-F 1/2 x 3/8 1/2-14 3/8-19 27 27 23
TPF-0808-F 1/2 x 1/2 1/2-14 1/2-14 27 27 23
TPF-0812-F 1/2 x 3/4 1/2-14 3/4-14 34 34 27
TPF-1208-F 3/4 x 1/2 3/4-14 1/2-14 34 34 27
TPF-1212-F 3/4 x 3/4 3/4-14 3/4-14 34 34 27
TPF-1216-F 3/4 x 1" 3/4-14 1-11 37 37 34
TPF-1612-F 1" x 3/4 1-11 3/4-14 37 37 34
TPF-1616-F 1" x 1" 1-11 1-11 37 37 34
TPF-1620-F 1" x 1 1/4 1-11 1 1/4-11 49 49 43
TPF-2016-F 1 1/4 x 1" 1 1/4-11 1-11 49 49 43
TPF-2020-F 1 1/4 x 1 1/4 1 1/4-11 1 1/4-11 49 49 43
TPF-2424-F 1 1/2 x 1 1/2 1 1/2-11 1 1/2-11 55 55 50
TPF-3232-F 2" x 2" 2-11 2-11 61.5 61.5 64
