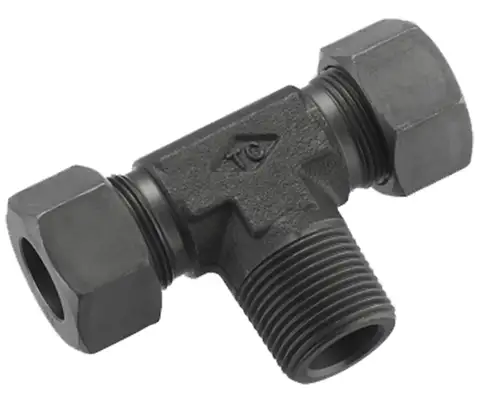

T型外径×外径×外径鋼管継手（日本規格）

T型外径×外径×外径鋼管継手（日本規格）

★印の商品はオーダーメイドです

シリアルナンバー仕様T T1 L L1 t H H1
外径 x PT x 外径PT(ねじ) （糸）
⭑ TDPD-0204-T 4 x 1/8 x 4 1/8-28 M8-1.0 20 22 4 14 12
TDPD-0206-T 6 x 1/8 x 6 1/8-28 M12-1.5 22 22 7 14 14
TDPD-0208-T 8 x 1/8 x 8 1/8-28 M14-1.5 22 22 7 14 17
⭑ TDPD-0404-T 4 x 1/4 x 4 1/4-19 M8-1.0 20 26 4 14 12
TDPD-0406-T 6 x 1/4 x 6 1/4-19 M12-1.5 22 26 7 14 14
TDPD-0408-T 8 x 1/4 x 8 1/4-19 M14-1.5 22 26 7 14 17
TDPD-0410-T 10 x 1/4 x 10 1/4-19 M16-1.5 25 30 7 19 19
TDPD-0412-T 12 x 1/4 x 12 1/4-19 M18-1.5 25 30 7 19 22
TDPD-0610-T 10 x 3/8 x 10 3/8-19 M16-1.5 25 30 7 19 19
TDPD-0612-T 12 x 3/8 x 12 3/8-19 M18-1.5 25 30 7 19 22
TDPD-0615-T 15 x 3/8 x 15 3/8-19 M22-1.5 29 33 7.5 23 27
TDPD-0812-T 12 x 1/2 x 12 1/2-14 M18-1.5 28 33 7 23 22
TDPD-0815-T 15 x 1/2 x 15 1/2-14 M22-1.5 29 33 7.5 23 27
TDPD-0818-T 18 x 1/2 x 18 1/2-14 M26-1.5 32 42.5 8 27 32
TDPD-1218-T 18 x 3/4 x 18 3/4-14 M26-1.5 32 42.5 8 27 32
TDPD-1220-T 20 x 3/4 x 20 3/4-14 M30-1.5 37 47 8 34 36
TDPD-1222-T 22 x 3/4 x 22 3/4-14 M30-1.5 37 47 9 34 36
TDPD-1225-T 25 x 3/4 x 25 3/4-14 M34-1.5 39 47 10 34 41
⭑ TDPD-1622-T 22 x 1" x 22 1-11 M30-1.5 37 47 9 34 36
TDPD-1625-T 25 x 1" x 25 1-11 M34-1.5 39 47 10 34 41
