L型外径×鋼管コア（欧州規格）

L型外径×鋼管コア（欧州規格）

★印の商品はオーダーメイドとなります。

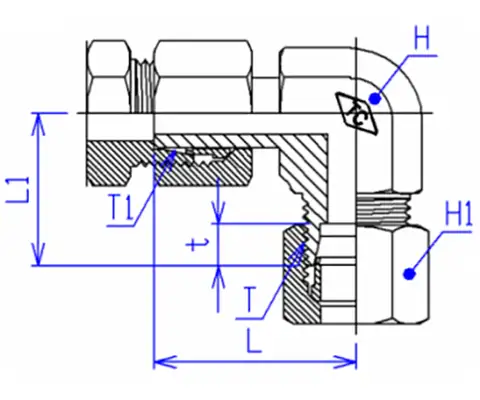

シリアルナンバー仕様T T1 L L1 t H H1
外径×鋼管コア（糸）鋼管コア
TDV-06L-L 6L x 6L M12-1.5 6 26.5 22 7 14 14
TDV-08L-L 8L x 8L M14-1.5 8 26.5 22 7 14 17
TDV-10L-L 10L x 10L M16-1.5 10 31 25 7 17 19
TDV-12L-L 12L x 12L M18-1.5 12 31 25 7 17 22
TDV-15L-L 15L x 15L M22-1.5 15 34 28 7.5 22 27
TDV-18L-L 18L x 18L M26-1.5 18 37.5 32 8 24 32
TDV-22L-L 22L x 22L M30-2.0 22 42 35 7.5 27 36
TDV-28L-L 28L x 28L M36-2.0 28 49 38 7.5 34 41
⭑ TDV-35L-L 35L x 35L M45-2.0 35 61 52 10.5 50 50
⭑ TDV-42L-L 42L x 42L M52-2.0 42 61 52 11 50 60
TDV-06S-L 6S x 6S M14-1.5 6 26.5 22 7 14 17
TDV-08S-L 8S x 8S M16-1.5 8 31 24 7 17 19
TDV-10S-L 10S x 10S M18-1.5 10 31 25 7.5 17 22
TDV-12S-L 12S x 12S M20-1.5 12 34 27 7.5 22 24
⭑ TDV-14S-L 14S x 14S M22-1.5 14 34 28 8 22 27
TDV-16S-L 16S x 16S M24-1.5 16 37.5 33 8.5 24 30
TDV-20S-L 20S x 20S M30-2.0 20 42 37 10.5 27 36
TDV-25S-L 25S x 25S M36-2.0 25 49 41 12 34 46
⭑ TDV-30S-L 30S x 30S M42-2.0 30 61 46 13.5 41 50
⭑ TDV-38S-L 38S x 38S M52-2.0 38 61 57 16 50 60
